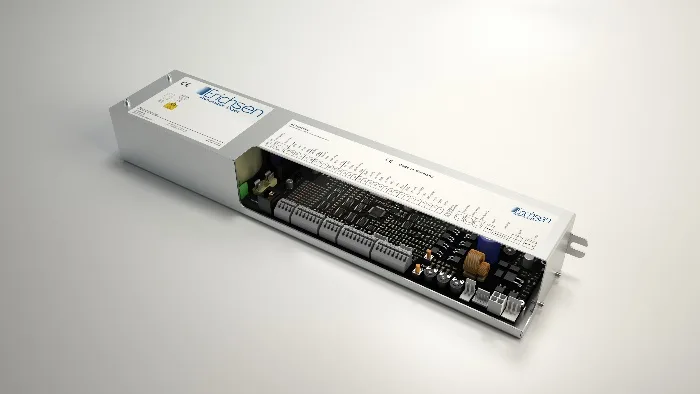

Control Unit
The controller is researched, designed and produced in Germany, following EU and German DIN requirements including machinery directives and electromagnetic compatibility regulations.
Sliding Doors
EAD-S150
EAD-S150 is made for high-traffic entrances, doors with normal or triple-glazing glass, average-sized entries, and tall, wide or heavy doors. Its operator gives the architecture a refined, confident look.
Overview
Technical specifications
Key values from the Erichsen product documentation for EAD-S150.
| Operator height | 100 mm |
|---|---|
| Operator depth | 174 mm |
| Gear motor power | 100 W |
| Hold-open time | 0 - 30 s, adjustable |
| Opening speed | Variable up to 1.1 m/s, double leaves |
| Closing speed | Variable up to 1.1 m/s, double leaves |
| Ambient temperature | -15 to +50 C |
| Maximum leaf weight | 1 x 200 kg / 2 x 150 kg |
| Track profile | Stainless steel |
| Input power | 230 V AC +/-10%, 50/60 Hz |
| Protection class | IP20 |
Gear Motor
The German-made brushed DC motor is built for continuous high-traffic use, combining durability, efficiency and very quiet operation.
Track Profile
The stainless steel track profile is rust-proof and anti-abrasion, reducing replacement needs and supporting long service life.
