Sliding Doors

EAD24

EAD24 is a heavy-duty door operator for demanding interior and exterior applications, including tall or wide openings and double or triple-glazed glass. It combines exceptional resistance to wear with an elegant aesthetic and certified safety.

Overview

Technical specifications

Key values from the Erichsen product documentation for EAD24.

Technical specifications for EAD24
Operator height	155 mm
Operator depth	160 mm
Gear motor power	100 W
Hold-open time	0 - 30 s, adjustable
Opening speed	Variable up to 1.1 m/s, double leaves
Closing speed	Variable up to 1.1 m/s, double leaves
Ambient temperature	-15 to +50 C
Maximum leaf weight	1 x 200 kg / 2 x 150 kg
Track profile	Stainless steel
Input power	230 V / 92 VA
Protection class	IP20

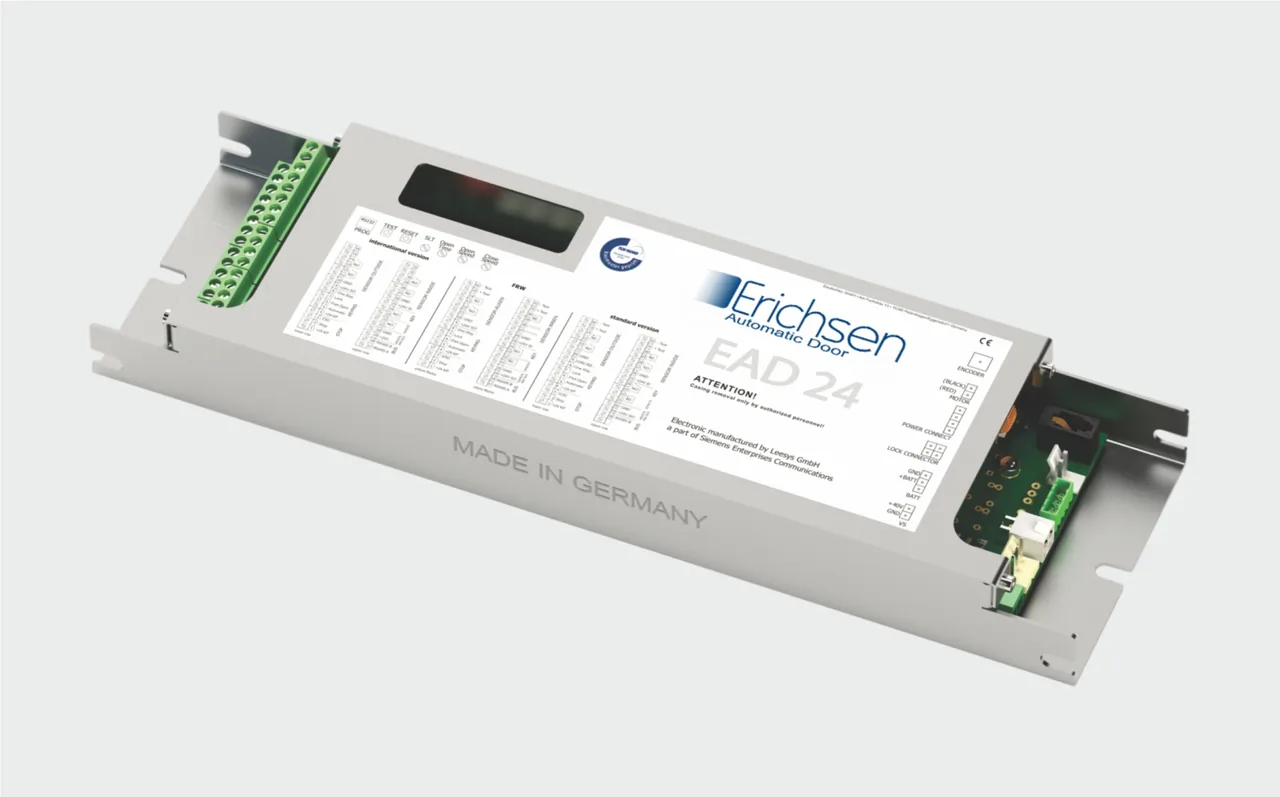

Control Unit

EAD24 uses a German high-tech control unit with software designed to save energy, improve usability and support networking for up to 256 doors without additional devices.

Gear Motor

EAD24 is driven by a powerful, reliable German-made electromotor designed for sturdy, long-lasting service.

Track Profile

Stainless steel track profile: Since Erichsen's stainless steel track profiles are rust-proof and anti-abrasion, they will never need to be replaced. This will be a great value for your money during time and will prevent any possible complication which may happen when replacing profiles.

Aluminum track profile: When Erichsen's detachable aluminum track profiles are worn out after a lengthy period of time, they can easily be replaced, which costs much less in comparison with replacing the whole rail.
