Sliding Doors

EAD68-PR

EAD68-PR offers an exceptionally compact 68 mm x 135 mm operator. Despite its low height and depth, it uses a 100 W motor and handles up to 120 kg for each leaf.

Overview

Technical specifications

Key values from the Erichsen product documentation for EAD68-PR.

Technical specifications for EAD68-PR
Operator height	68 mm
Operator depth	135 mm
Gear motor power	100 W
Hold-open time	0 - 30 s, adjustable
Opening speed	Variable up to 1.1 m/s, double leaves
Closing speed	Variable up to 1.1 m/s, double leaves
Ambient temperature	-15 to +50 C
Maximum leaf weight	1 x 140 kg / 2 x 120 kg
Track profile	Stainless steel
Input power	230 V / 92 VA
Protection class	IP20

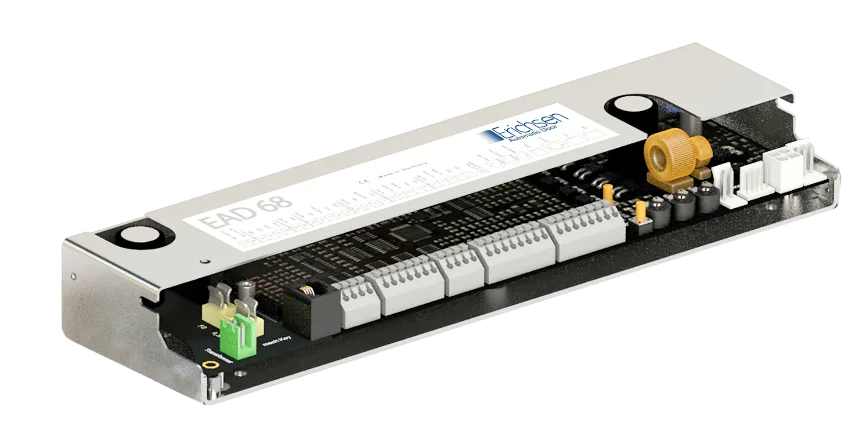

Control Unit

The control system is specified for relevant automatic door safety and electrical standards including EN ISO 13849-1, DIN 18650, EN 16005 and EN 60335.

Gear Motor

EAD68 motors are fully made in Germany. Their 100 W brushed DC motors are designed for reliable lifetime performance and quiet operation.

Track Profile

When Erichsen's detachable aluminum track profiles are worn out after a lengthy period of time, they can easily be replaced, which costs much less in comparison with replacing the whole rail.

Since Erichsen's stainless steel track profiles are rust-proof and anti-abrasion, they will never need to be replaced. This will be a great value for your money during time and will prevent any possible complication which may happen when replacing profiles.
